Posts: 1,896
Thanks: 67348 in 210 Posts
I only wonder about that mural by @Bakie .. the one that's up for download has a lot of different textures, obviously, but I don't see any seams on their screenshot -- with that the problem was only with the corner bits it appears. |
On my wallpapers, only the middle of the wall is different. I used the same plain grass with blue sky on each wallpaper. And for that plain one I used the offset option in photoshop to make it seamless.
And as you say, there were 2 walls that did have the seams. To split the tree I used offset, so I know for sure that they would fit next to each other. But as Snaitf already said:
... it only appears to happen when placing 2 different wall textures next to eachother, even if they line up. (Or floor textures, even when simply rotated.) |
I still had the seam problem when placing those 2 "corner" walls next to each other. Although I think it's strange that the blue sky also showed seams with those two wallpapers..
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 11,006
Thanks: 423050 in 1121 Posts
On my wallpapers, only the middle of the wall is different. I used the same plain grass with blue sky on each wallpaper. And for that plain one I used the offset option in photoshop to make it seamless. |
Yeah but the resulting textures you exported, those are still different. That's what I meant.
Maybe there is something about that placement behaviour that we (or at least I) still don't understand. Like what the game treats as "different" and "same" .. maybe it isn't the texture but something to do with that funky "corner placing intelligence" it has now (or at least thinks it has). I'm going to d/l yours and see if I can find something.
@Bakie can you maybe upload your corner textures here?
Edit: It's not UnkIID01 .. that seems to be really only the sorting. But I noticed that the Maxis siding also has a slight seam, but only in one direction . Doesn't change when I override it with Unk15 301. And UnkCommon06 is the swatch sort order by the looks of it.
Edit2: Attached below: Maxis seam. (seams.jpg) The corner with the missing spec/bump is mine, the other one (left) is EA .. that ALSO has a seam, albeit a very very very tiny one. The other screen (seam.jpg) is with Maxis walls on both sides, and I cannot detect a seam there on thre right-hand side.
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 1,896
Thanks: 67348 in 210 Posts
Yeah but the resulting textures you exported, those are still different. That's what I meant. Maybe there is something about that placement behaviour that we (or at least I) still don't understand. Like what the game treats as "different" and "same" .. maybe it isn't the texture but something to do with that funky "corner placing intelligence" it has now (or at least thinks it has). I'm going to d/l yours and see if I can find something. @Bakie can you maybe upload your corner textures here? |
The attached .rar file contains the corner tree dds files, those who had seams in game.
Don't know if you can find something by looking at it. I think the big problem is the different textures on the sides placed against each other. But that still doesn't make sense why the blue sky shows seams too on the other sides of the wall. And it's not only when placing those two walls in a corner..
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
CC4Sims
Love will humiliate you and hate will cradle you.
Jealousy would be far less torturous if we understood that love is a passion entirely unrelated to our merits.
Posts: 487
Thanks: 29003 in 78 Posts
Hi all, I don't notice any seam between the different panels. But the base is exactly the same for all panels and the middle part has just different colors. :lovestruc |
I only have issues with lines if one side of a wall is different from the other side of the wall, your paneling is the same on both sides so that is why there is no issue
CC4Sims
Love will humiliate you and hate will cradle you.
Jealousy would be far less torturous if we understood that love is a passion entirely unrelated to our merits.
Posts: 11,006
Thanks: 423050 in 1121 Posts
oooh, ooh, ooh, I may have just figured this out, let me go test! |
I knew it
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 487
Thanks: 29003 in 78 Posts
However, this REALLY looks like an offset issue to me now. In each pic, it looks like one pixel of one of the sides is wrapping on to the other side.
Or am I wrong?
I tried offsetting my walls by 1px both ways, but it didn't fix it. But still, that really looks like what's going on.
Posts: 11,006
Thanks: 423050 in 1121 Posts
However, this REALLY looks like an offset issue to me now. In each pic, it looks like one pixel of one of the sides is wrapping on to the other side. Or am I wrong? I tried offsetting my walls by 1px both ways, but it didn't fix it. But still, that really looks like what's going on. |
Yeah it is some kind of wrapping thing, but it's not in the original textures (it's also much less than one pixel) -- that is why I was thinking mipmaps. Because those are what you really see on screen most of the time.
See also my edit above re. all the UNKs that I looked at meanwhile (just so you don't do that twice =)
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 1,896
Thanks: 67348 in 210 Posts
oooh, ooh, ooh, I may have just figured this out, let me go test! |
Very curiuous! Hope you do find a solution
EDIT:
Ow you didn't :P
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 11,006
Thanks: 423050 in 1121 Posts
The attached .rar file contains the corner tree dds files, those who had seams in game. Don't know if you can find something by looking at it. I think the big problem is the different textures on the sides placed against each other. But that still doesn't make sense why the blue sky shows seams too on the other sides of the wall. And it's not only when placing those two walls in a corner.. |
Ah I didn't mean the raw dds files, sorry -- I meant the actual package.
Oh and your walls are DXT5, too (the working, plain ones). (Like the corner ones I mean)
I see a difference between the MATD of one of the in-game "SimpleSiding" walls
PublicChunks: 0x00000001
Unused: 0x00000000
--- CountedTGIBlockList: Resources (0x0) ---
---
--- ChunkEntryList: ChunkEntries (0x1) ---
--- ChunkEntries[0] ---
--- 0x01D0E75D-0x00000000-0x5F631E06640664E3 - MATD ---
Version: 0x00000103
MaterialNameHash: 0x3BABFE23
Shader: 0x213D6300 (PreviewWallsAndFloors)
IsVideoSurface: False
IsPaintingSurface: False
--- MTNF: Mtnf ---
MTNFUnknown1: 0x00000000
--- ShaderDataList: SData (0xF) ---
[0]: Field: 0x97AAC842 (2544552002); Data0: 0.0000; Data1: 2.0000
[1]: Field: 0x8CB57AF4 (2360703732); Data0: 1.0000; Data1: 1.0000
[2]: Field: 0x2CE11842 (Specular); Data0: 0.5000; Data1: 0.5000; Data2: 0.5000
[3]: Field: 0xF755F7FF (Shininess); Data: 20.0000
[4]: Field: 0x19D7A3C0 (433562560); Data: 0x00B2D882-0x00000000-0xCEB31003C33D903C
[5]: Field: 0xAD528A60 (SpecularMap); Data: 0x00B2D882-0x00000000-0x328756E1D8728107
[6]: Field: 0x420520E9 (UVScales); Data0: 0.0000; Data1: 0.0000; Data2: 0.0000; Data3: 0.0000
[7]: Field: 0x05D22FD3 (Transparency); Data: 1.0000
[8]: Field: 0x2D4E507E (DiffuseUVScale); Data0: 1.0000; Data1: 1.0000
[9]: Field: 0x6CC0FD85 (DiffuseMap); Key: 0x00B2D882-0x00000000-0x5E94D88737AEEC27
[A]: Field: 0x449A3A67 (AverageColor); Data: 0x00000000
[B]: Field: 0x415368B4 (NormalMapUVSelector); Data0: 0.0000; Data1: 0.0000; Data2: 0.0000
[C]: Field: 0xB63546AC (SpecularUVSelector); Data0: 0.0000; Data1: 0.0000; Data2: 0.0000
[D]: Field: 0x6E56548A (NormalMap); Data: 0x00B2D882-0x00000000-0x328756E1D872811A
[E]: Field: 0x637DAA05 (Diffuse); Data0: 1.0000; Data1: 1.0000; Data2: 1.0000
and the one that I cloned with S4S
PublicChunks: 0x00000001
Unused: 0x00000000
--- CountedTGIBlockList: Resources (0x0) ---
---
--- ChunkEntryList: ChunkEntries (0x1) ---
--- ChunkEntries[0] ---
--- 0x01D0E75D-0x80000000-0x1F509E7F97221103 - MATD ---
Version: 0x00000103
MaterialNameHash: 0xAE28E562
Shader: 0x213D6300 (PreviewWallsAndFloors)
IsVideoSurface: False
IsPaintingSurface: False
--- MTNF: Mtnf ---
MTNFUnknown1: 0x00000000
--- ShaderDataList: SData (0xD) ---
[0]: Field: 0x97AAC842 (2544552002); Data0: 0.0000; Data1: 2.0000
[1]: Field: 0x8CB57AF4 (2360703732); Data0: 1.0000; Data1: 1.0000
[2]: Field: 0x2CE11842 (Specular); Data0: 0.5000; Data1: 0.5000; Data2: 0.5000
[3]: Field: 0xF755F7FF (Shininess); Data: 20.0000
[4]: Field: 0x19D7A3C0 (433562560); Data: 0x00B2D882-0x80000000-0x166672E0FF38C175
[5]: Field: 0xAD528A60 (SpecularMap); Data: 0x00B2D882-0x80000000-0xE6865AC0F858AFFE
[6]: Field: 0x05D22FD3 (Transparency); Data: 1.0000
[7]: Field: 0x2D4E507E (DiffuseUVScale); Data0: 1.0000; Data1: 1.0000
[8]: Field: 0x6CC0FD85 (DiffuseMap); Key: 0x00B2D882-0x80000000-0x3B068ADA26B46EA4
[9]: Field: 0x449A3A67 (AverageColor); Data: 0x00000000
[A]: Field: 0x8286D3EC (2189874156); Data: 0.0000
[B]: Field: 0x6E56548A (NormalMap); Data: 0x00B2D882-0x80000000-0xB1236EDE1341C364
[C]: Field: 0x637DAA05 (Diffuse); Data0: 1.0000; Data1: 1.0000; Data2: 1.0000
in that the NormalMapUVSelector (Data0: 0.0000; Data1: 0.0000; Data2: 0.0000) and SpecularUVSelector
(Data0: 0.0000; Data1: 0.0000; Data2: 0.0000) fields are missing. I dunno, would that lead to funkiness perhaps? At least for those walls who have custom bump/specs?
One of the WallEz ones, that's much more stripped down (since it doesn't do bump/specs yet)
PublicChunks: 0x00000001
Unused: 0x00000000
--- CountedTGIBlockList: Resources (0x0) ---
---
--- ChunkEntryList: ChunkEntries (0x1) ---
--- ChunkEntries[0] ---
--- 0x01D0E75D-0x00000000-0x6256D7286F16A955 - MATD ---
Version: 0x00000103
MaterialNameHash: 0xE89DE335
Shader: 0x213D6300 (PreviewWallsAndFloors)
IsVideoSurface: False
IsPaintingSurface: False
--- MTNF: Mtnf ---
MTNFUnknown1: 0x00000000
--- ShaderDataList: SData (0xA) ---
[0]: Field: 0xF755F7FF (Shininess); Data: 20.0000
[1]: Field: 0x2CE11842 (Specular); Data0: 0.5000; Data1: 0.5000; Data2: 0.5000
[2]: Field: 0x97AAC842 (2544552002); Data0: 0.0000; Data1: 2.0000
[3]: Field: 0x8286D3EC (2189874156); Data: 0.0000
[4]: Field: 0x6CC0FD85 (DiffuseMap); Key: 0x00B2D882-0x00000000-0x1DA69960C3380F16
[5]: Field: 0x05D22FD3 (Transparency); Data: 1.0000
[6]: Field: 0x449A3A67 (AverageColor); Data: 0x00000000
[7]: Field: 0x637DAA05 (Diffuse); Data0: 1.0000; Data1: 1.0000; Data2: 1.0000
[8]: Field: 0x2D4E507E (DiffuseUVScale); Data0: 1.0000; Data1: 1.0000
[9]: Field: 0x8CB57AF4 (2360703732); Data0: 1.0000; Data1: 1.0000
Since Maxis are apparently producing walls with empty bumpmaps/speculars .. maybe they are required? And need their UVSelectors too so as to not look crappy?
Unfortunately there's no way to test this right now, since s4pe borks the MATD .. =/
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 1,896
Thanks: 67348 in 210 Posts
Ah I didn't mean the raw dds files, sorry -- I meant the actual package. Oh and your walls are DXT5, too (the working, plain ones). (Like the corner ones I mean) |
Oh I'm sorry, here is the old package file including the corners with seams.
As for the white stripe, I think it's as thin as a guide line on photoshop. But you can't edit those small sections right?
BakieGaming_GrasslandSummer_Combine Set_Old.rar (786.2 KB, 8 downloads) - View custom content | ||||||||||
Size Packed Ratio Date Time Attr CRC Meth Ver ------------------------------------------------------------------------------- BakieGaming_GrasslandSummer_Combine Set.package 858876 804985 93% 15-10-14 13:24 .....A. 18CC2A9F m3e 2.9 ------------------------------------------------------------------------------- 1 858876 804985 93% |
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 1,896
Thanks: 67348 in 210 Posts

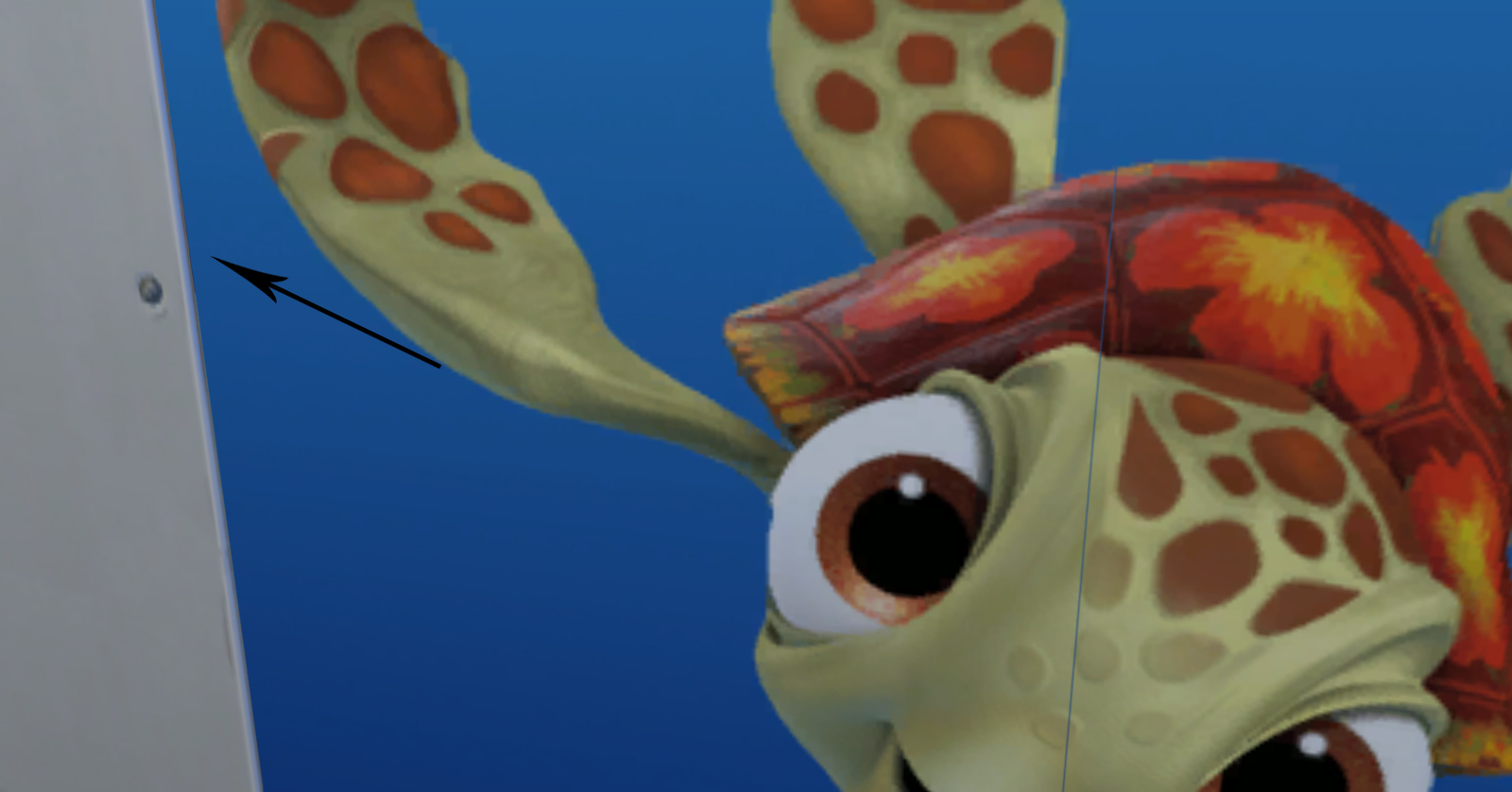

I think on the second image it's better visible..
Also on the second image you already see a thin white line that I don't see on the first image
EDIT:
Ow it's the turtle...:
There is no white line anymore on the whole side in game.. And it looks these 2 sides are switched...If there is a way to switch them back, the "white" line is gone...
@plasticbox
@Snaitf If you look at your wall with the photo on it, and look at the 4th wallpaper from the right. If you would switch those lines, that piece of the wall will be without lines.. 'Cause the dark line of the right is from the mountain top on the left..
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 11,006
Thanks: 423050 in 1121 Posts
Please don't remove the screenshots/packages you posted here, they're also linked from there! Thank you! Hopefully they will take pity on us =)
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 1,896
Thanks: 67348 in 210 Posts
So there's a thread on this now at EA / Modding: http://forums.thesims.com/en_US/dis...amless-textures Please don't remove the screenshots/packages you posted here, they're also linked from there! Thank you! Hopefully they will take pity on us =) |
I only removed the .rar including the dds files you didn't asked for
But I've read the post on the official Sims forum and saw that you linked my corner tree image and package file and turtle image.
The won't be removed.
I hope they can help us with this problem. There are very nice things possible if we get rid of these seams.
A work around for Snaitf photo wall and my turtle, would be a combination between wallpapers and wallstickers. But as there is no program for wallstickers yet, it isn't possible yet.
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 1,548
Thanks: 330 in 5 Posts
I made a new set with eight walls: Conversion of the "Victorian Outdoor set" created by Komosims for Sims 2.
I don't notice lines between the different panels, maybe some little mistakes, but they were already visible in Sims 2 and Sims 3: The original set was really beautiful, but not absolutely perfect.
There is this ugly shadow on a corner, but it's the same as on the bare wall and don't seem related to the custom wallcovering.
I am disappointed that there are more or less issues in different games, with people using the same programs. Unfortunately I am not able to help, but I am sure that you guys will figure it out soon.
Thanks again. :lovestruc
Posts: 11,006
Thanks: 423050 in 1121 Posts
A work around for Snaitf photo wall and my turtle, would be a combination between wallpapers and wallstickers. |
That might even be more practical than using wall pieces (so that one can move it around in one piece, etc) .. it only wouldn't adapt to the wall heights. But for things like the your tree, a wall sticker would be a good solution I guess! (Aren't there already wall stickers in game that are rather boring? I don't know if they have a texture, but if they do, overriding them would already be possible!)
Also, another experiment: A direct override (texture replacement) of a Maxis diffuse texture does NOT result in seams, see screenshots below. This is a relief insofar as there's probably really nothing wrong with the actual textures. Not with the diffusion ones at least, and likely not with the bumps/specs either, as I don't think Bakie's murals for instance even had bumps or specs. (I only wish I'd had that genius idea of testing with overrides a couple hours earlier .. )
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Posts: 1,896
Thanks: 67348 in 210 Posts
Aren't there already wall stickers in game that are rather boring? I don't know if they have a texture, but if they do, overriding them would already be possible! |
Yeah, there are some rather boring ones in game But I don't know how that works with overwriting files. And it would be better to have standalone's of course.
And with the option in-game to make things bigger, you could then make some really nice wall coverings. Maybe @granthes knows how to make a tool for that if he got some spare time
Otherwise it's waiting on EA to come with a solution for the seams.
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Hi again, I made a new set with eight walls: Conversion of the "Victorian Outdoor set" created by Komosims for Sims 2. I don't notice lines between the different panels, maybe some little mistakes, but they were already visible in Sims 2 and Sims 3: The original set was really beautiful, but not absolutely perfect. There is this ugly shadow on a corner, but it's the same as on the bare wall and don't seem related to the custom wallcovering. I am disappointed that there are more or less issues in different games, with people using the same programs. Unfortunately I am not able to help, but I am sure that you guys will figure it out soon. Thanks again. :lovestruc |
I think I see a line in the brick, but it does blend in better because of all the different textures.
CC4Sims
Love will humiliate you and hate will cradle you.
Jealousy would be far less torturous if we understood that love is a passion entirely unrelated to our merits.
Posts: 487
Thanks: 29003 in 78 Posts
However, mural type walls can't be fixed this way, because they have to line up on BOTH edges, and copying the right side pixel to the left, fixes one edge, but ruins the other.
Posts: 487
Thanks: 29003 in 78 Posts
Because of these seams it's not aproved in the moderation queue. |
Your upload was not approved because of those tiny little lines, and yet this was accepted?
http://www.modthesims.info/download.php?t=539401
I'm confused...
Posts: 1,896
Thanks: 67348 in 210 Posts
Your upload was not approved because of those tiny little lines, and yet this was accepted? http://www.modthesims.info/download.php?t=539401 I'm confused... |
The seams were one of the reasons it wasn't accepted.
There were some image changes to be made too.
But I saw this upload too and was also wondering how it passed the moderation queue
EDIT:
@Pbox Ow, we replied at the same time.
It's true mine were more visible because of the less textures.
And I'm a bit of a perfectionist, so that's why I deleted the whole "corner" walls and made new ones instead.
For the people who would like to support me some more, take a look at my: BakieGaming Patreon page
For a quick mod overview, take a look at my Profile page
Posts: 11,006
Thanks: 423050 in 1121 Posts
And I'm a bit of a perfectionist |
Yeah, I thought so
I hope you know you can always use Creator Issues whenever you’re not happy with how uploads are being dealt with =)
Stuff for TS2 · TS3 · TS4 | Please do not PM me with technical questions – we have Create forums for that.
In the kingdom of the blind, do as the Romans do.
Your upload was not approved because of those tiny little lines, and yet this was accepted? http://www.modthesims.info/download.php?t=539401 I'm confused... |
The uploader has queue bypass privileges; looking at the upload the "checked by mod" box is not ticked, so it hasn't been approved by anyone yet.
More downloads by Leesester, BoilingOil and others at Leefish.nl | My Stuff at Leefish.nl | LeeFish RSS | Sims4 News Blog | TumblinLeefish
Posts: 487
Thanks: 29003 in 78 Posts
The uploader has queue bypass privileges; looking at the upload the "checked by mod" box is not ticked, so it hasn't been approved by anyone yet. |
Ah, that makes sense...
Who Posted
|
